FIND OUT WHERE THE WIND IS COMING FROM.
To do this project, you need:
- your electro-board
- one empty pop can
- 4 common nails 9 cm long
- 5 pieces of wire .5 m long
- 4 pieces of wire 6 cm long
- 2 short nails
- white glue
- a pencil
- a ruler
- a compass
- 1 a block of wood about 5 cm x 10 cm x 15 cm
- 2 small pieces of wood 2 cm x 2 cm x 12 cm

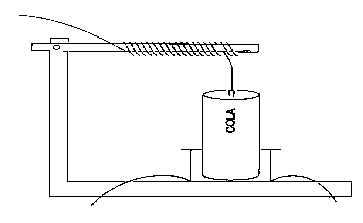

FOLLOW THESE STEPS TO MATCH THE PICTURE.
- First, bare both ends of all wires.
- Then, draw a 6 cm x 6 cm square on the block. Mark the corners N,
E, S, W like a compass.
- Lightly hammer a 9 cm nail to make a hole at each corner. Take the
nail back out every time.
- Place one end of a long wire into each hole and hole each one by
hammering in a 9 cm nail. Leave 5 cm of each nail sticking up.
- Nail and glue the end of one small piece of wood (the arm) to the
end of the other (the post). Nail and glue the post so that it sticks straight
up the back of the block.
- Sand all the paint off around the bottom of the can.
- Wrap the bare end of a 6 cm wire around the pull tap of the can.
Use the wire to hang the can on the arm. Carefully fasten it so that it
hangs down right into the middle of the 4 nails. You have finished building
the detector's sensor.
- Connect the sensor's wires to the board like this.
- Test the switch by touching the nails with the can. One by one,
the LEDs should light up. If not, sand the can again and the nails as well
in case they have a coating.
- Take the wind detective outside and set it up in a clear flat place.
When a north wind blows, the can will touch one of the nail. That will
complete a circuit and make one LED light up. Use the compass to find north.
Now, move the can yourself to touch a nail like the north wind would. Mark
the glowing LED N for north. Do this for the other three directions until
all four LEDs are marked. Now, the wind detective is ready to use.
- How can you use the wind detective inside your house while keeping
the sensor outside?
- Can you use something besides a tin can in the sensor?
You have built a wind direction indicator that works electronically.
It uses the wind to control electrons. Every time the wind blows, the can
touches one nail, closes a circuit and lights the LED on that circuit.
It is important that all paint be sanded off the end of the can where
it touches the nails.
Some nails have a coating that must be sanded off.
Bending the nails slightly away from the can might improve contact.
The arm and post connection could be strengthened either by binding
with string and glue or by using a brace.
Any light metal object could be used instead of a can - a ball of
